2D/3D Dual Solid State ToF LiDAR

Cygbot's 2D/3D Dual Solid-State ToF LiDAR helps translate the 3D world into a 2D image and a 3D object using precisely measured depth data, so it can be used in the following industries: security, industrial automation, drones, touch screen and so on. The budget-friendly products are even operating without moving parts.

Specification

Detection Range

2D : < 10.0M

3D : <  2.0M

Distance Accuracy

<±1%

Key features

  • Map-building and Obstacle avoidance

  • Fast sampling rate

  • ​small module without motor

  • Price competitive advantage

Specification

Detection Range

2D : < 10.0M

3D : <  2.0M

<±1%

Distance Accuracy

Angular Resolution

2D : 1deg

3D : 160 x 60

Field of View

2D : 120deg

3D : H120, V45deg

Measurement Speed

2D : 20Hz

3D : 10Hz

2D/3D Dual Solid State ToF LiDAR

Cygbot's 2D/3D Dual Solid-State ToF LiDAR helps translate the 3D world into a 2D image and a 3D object using precisely measured depth data, so it can be used in the following industries: security, industrial automation, drones, touch screen and so on. The budget-friendly products are even operating without moving parts.

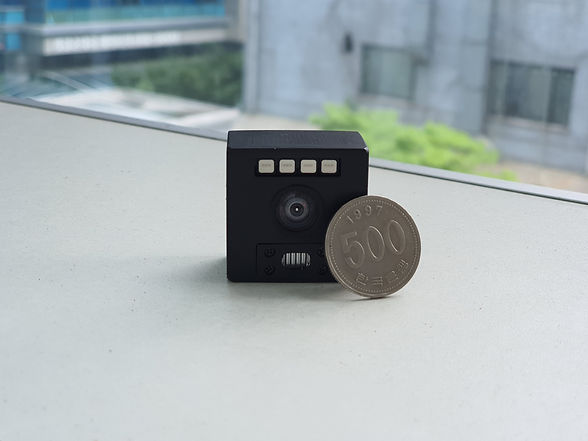

Compact - Light - Economic

Weighing only 28g and featuring a compact design.

CygLiDAR is optimized for usage across a variety of applications, including automotive, mapping, robotics, security, smart cities and more.

tof보급형 (2).jpg

Specification

Detection Range

2D : < 200mm ~ 8,000mm

3D : 50mm ~ 2,000mm (*DRM)

Distance Accuracy

±1%

Field of View

2D/3D Horizontal : 120º

3D Vertical : 65º

Resolution

2D : 1º (Angle)

3D : 160 x 60 (Pixel)

Measurement Speed

2D : 15Hz

3D : 15Hz

Wavelength

LED : NIR 808nm

Laser Diode : NIR 808nm

Operating Temperature

-20º ~ 60º

Interface

UART TTL(3.3V)

3,000,000 bps

Size (W*H*D)

37.4*37.4*24.5 (mm)

Weight

28g

*DRM : Dynamic Range Mode

*Range affected by reflectivity

Key features

  • Map-building and Obstacle avoidance

  • Fast sampling rate

  • ​small module without motor

  • Price competitive advantage

2D/3D SLAM with CygLiDAR

2D / 3D Dual LiDAR for Mobile Robot

2D/3D Dual Solid State ToF LiDAR

Cygbot's 2D/3D Dual Solid-State ToF LiDAR helps translate the 3D world into a 2D image and a 3D object using precisely measured depth data, so it can be used in the following industries: security, industrial automation, drones, touch screen and so on. The budget-friendly products are even operating without moving parts.


Online store

  • 2021 WIS Innovation Awards

  • 2020 RobotWorld Awards

Compact - Light - Economic

Weighing only 28g and featuring a compact design.

CygLiDAR is optimized for usage across a variety of applications, including automotive, mapping, robotics, security, smart cities and more.

tof보급형 (2).jpg

Specification

Detection Range

2D : < 200mm ~ 8,000mm

3D : 50mm ~ 2,000mm (*DRM)

Distance Accuracy

±1%

Field of View

2D/3D Horizontal : 120º

3D Vertical : 65º

Resolution

2D : 0.75º (Angle)

3D : 160 x 60 (Pixel)

Measurement Speed

2D : 15Hz

3D : 15Hz

Wavelength

LED : NIR 808nm

Laser Diode : NIR 808nm

Operating Temperature

-20º ~ 60º

Interface

UART TTL(3.3V)

57600 - 3,000,000 bps

Size (W*H*D)

37.4*37.4*24.5 (mm)

Weight

28g

*DRM : Dynamic Range Mode

*Range affected by reflectivity

Use environment

Indoor

Certification

KC,FCC,CE

Key features

  • Map-building and Obstacle avoidance

  • Fast sampling rate

  • ​small module without motor

  • Price competitive advantage

2D/3D SLAM with CygLiDAR

2D / 3D Dual LiDAR for Mobile Robot

Use Case


Robot Vacuum


Education Robot


Smart Toy
